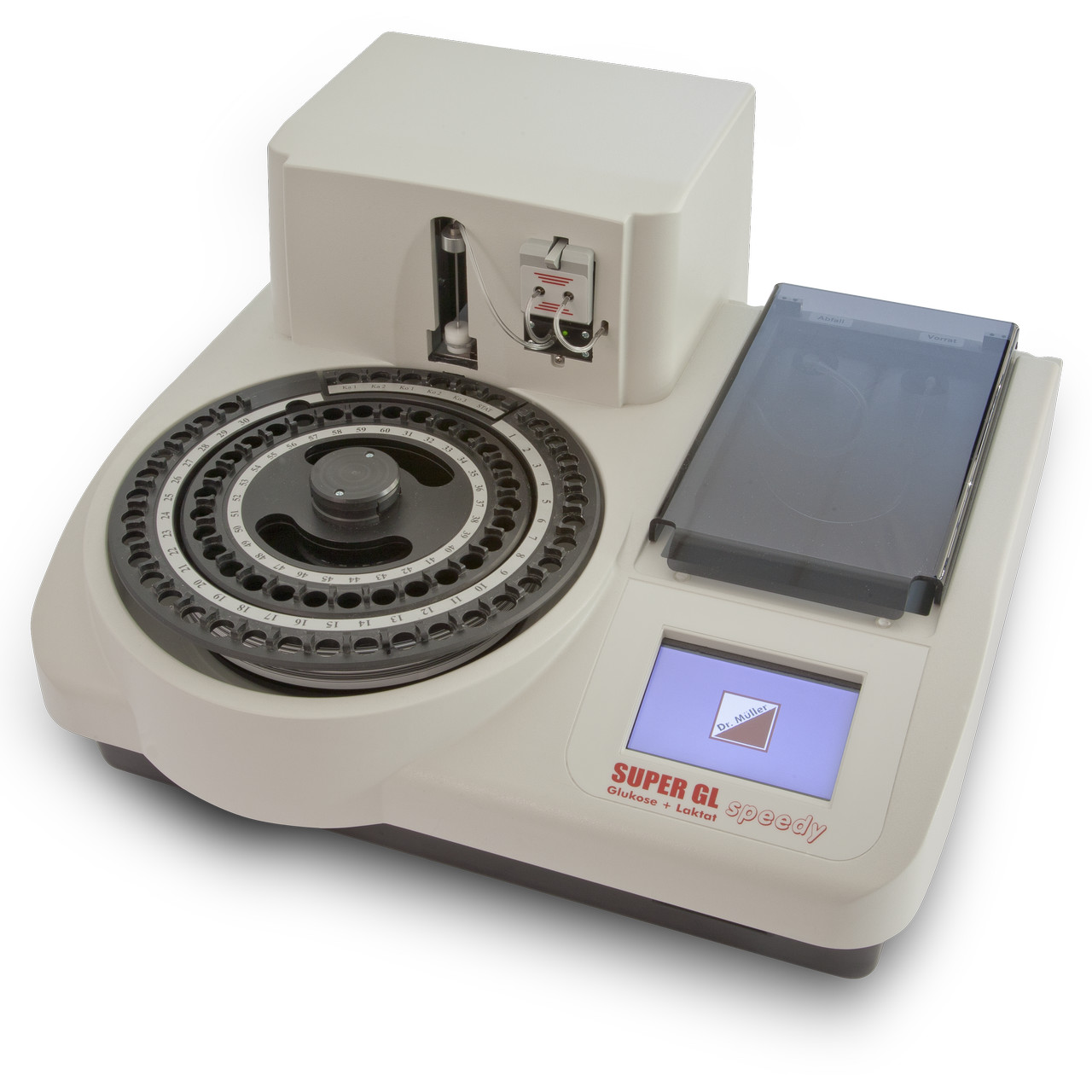

SUPER GL speedy

The well known analysers of the product line SUPER G were developed for clinical laboratory. With the SUPER GL speedy an analyser was developed which uses the modern technology of the sensors together with other new technical items. So the SUPER GL speedy has besides a innovative sample rotor for 60 samples a new touch screen for easy operating the device in menu choosing and together with both news also the well known biosensor.

As with all analysers using the enzymatic-amperometric measuring principle, pre-analysis is quite simple. Only a few µl of capillary blood are needed, taken from the finger berry using an end-to-end or open-end-capillary. These samples are diluted using a defined amount of solution in a sample cup and hemolysed, and can then be measured immediately. Approximately one minute after taking the blood, you have the result.

All devices provide the technical standard necessary for modern analysers, such as a variety of EDP links, barcode reader, storage function for the samples and controls etc.

We realised the IFCC-recommendation for displaying the glucose values plasma referenced at this device.

Please note that the order form is not available via the mobile version. Alternatively, you can use the order form as a PDF.

Technical data
Consumables
Downloads

Performance Data

Measuring Time

Series Measurement Glucose	ca. 18 seconds - 200 samples/hour
Series Measurement Glucose / Lactate	ca. 30 seconds - 120 samples/hour

Measuring Range

Glucose	0.5 mmol/l to 50 mmol/l or 10.8 mg/dl to 900.8 mg/dl
Lactate	0.5 mmol/l to 30 mmol/l or 4.5 mg/dl to 270 mg/dl

Sample Volume

10 µl / 20 µl sample diluted with 500 µl / 1000 µl hemolysate solution

Precision (60 samples) - Variation Coefficient Indication

Glucose (12 mmol/l or 216 mg/dl)	< 1.5 %
Lactate (10 mmol/l or 90 mg/dl)	< 1.5 %

Sensors

Operating Time Glucose Sensor	max. 2 months / max. 10.000 samples
Operating Time Glucose and Lactate Sensors	max. 3 months / max. 10.000 samples

Technical Specifications

Working Temperatur	+ 15 °C bis + 35 °C
Supply Voltage	24 V DC
Power Consumption	max. 60 W
Classification according MPG	In-vitro-Diagnosticum (guidline 98/79/EC)

Interfaces

Printer	serial, RS 232
EDP	serial, RS 232
Barcode Reader	integrated

Dimensions / Weight

Width	470 mm
Hight	280 mm
Depth	450 mm
Weight	11 kg

General data Company: * Address: * Contact person: * Customer number: Remarks:

Rush order

Sensors

QuantityItem numberItem descriptionDevice(s)

0320 210 000 00Sensor glucoseSUPER GL2, SUPER GL speedy 0500 210 000 00Sensor glucose/lactate 1000 samplesSUPER GL2, SUPER GL speedy, SUPER GL ambulance 0500 211 000 00Sensor glucose/lactate 3000 samplesSUPER GL2, SUPER GL speedy, SUPER GL ambulance 0500 218 000 00Sensor glucose/lactate 10000 samplesSUPER GL2, SUPER GL speedy, SUPER GL ambulance 0550 960 000 00Sensor glucose Ge/Ge+/GLcSUPER GL compact, SUPERL GL easy / SUPER GL easy+ 0550 961 000 00Sensor lactate Ge/Ge+/GLcSUPER GL compact, SUPERL GL easy / SUPER GL easy+ 0550 963 000 00Sensor glucose/lactate Ge/Ge+/GLcSUPER GL compact, SUPERL GL easy / SUPER GL easy+

Washing solution

QuantityItem numberItem descriptionDevice(s)

0450 951 002 00Containerkit SUPER ID clinchem, 1 x 300 mlSUPER ID Clinchem

Reagent cartidges

QuantityItem numberItem descriptionDevice(s)

0450 980 100 00HbA1c ID, 100 pcs.SUPER ID Clinchem 0450 980 110 00Glucose ID, 100 pcs.SUPER ID Clinchem 0450 980 115 00CRP ID, 100 pcs.SUPER ID Clinchem

Hemolysate-System-Solution

QuantityItem numberItem descriptionDevice(s)

8660 1006Hemolysate-System-Solution 6 x 1000mlSUPER GL2, SUPER GL ambulance 0110 980 006 00Hemolysate-System-Solution 5 x 1200mlSUPER GL speedy 0500 980 011 00Hemolysate-System-Solution 1 x 1000mlSUPER GL2, SUPER GL ambulance 0550 951 002 00Hemolysate-System-Solution Containerkit 1x 300 mlSUPER GL compact, SUPER GL easy / SUPER GL easy+

Control material

QuantityItem numberItem descriptionDevice(s)

0450 988 001 00HbA1c Control NSUPER GL clinchem 0450 988 002 00HbA1c Control PSUPER GL clinchem 0500 988 002 00TruLab NSUPER GL compact, SUPER GL2, SUPER GL speedy, SUPER GL easy / SUPER GL easy+, SUPER GL ambulance 0500 988 003 00TruLab PSUPER GL compact, SUPER GL2, SUPER GL speedy, SUPER GL easy / SUPER GL easy+, SUPER GL ambulance 0500 988 012 00GL Control NSUPER GL compact, SUPER GL2, SUPER GL speedy, SUPER GL easy / SUPER GL easy+, SUPER GL ambulance 0500 988 013 00GL Control PSUPER GL compact, SUPER GL2, SUPER GL speedy, SUPER GL easy / SUPER GL easy+, SUPER GL ambulance

Glucocapil reaction cups

QuantityItem numberItem descriptionDevice(s)

8666 155 001.5 ml / 500 µl gluc/lac, 10 x 100 pcs.SUPER GL compact, SUPER GL easy / SUPER GL easy+ 8666 200 002.0 ml / 1000 µl, 10 x 100 pcs.SUPER GL2, SUPER GL speedy, SUPER GL ambulance 0450 980 006 00Sample cups ID, 100 pcs., incl. 10µl open-end-capillariesSUPER GL clinchem 0560 980 005 001.5 ml / 500 µl gluc/lac/hb, 10 x 100 pcs.SUPER GL compact, SUPER GL easy / SUPER GL easy+

Capillaries

QuantityItem numberItem descriptionDevice(s)

9010 210 01end-to-end-capillaries 10µl, 10 x 100 pcs.SUPER GL compact, SUPER GL easy / SUPER GL easy+ 9050 210 01open-end-capillaries 10 µl , 10 x 100 pcs.SUPER GL compact, SUPER GL easy / SUPER GL easy+ 9010 220 01end-to-end-capillaries 10 µl, 10 x 100 pcs.SUPER GL2, SUPER GL speedy, SUPER GL ambulance 9050 220 01open-end-capillaries 10 µl, 10 x 100 pcs.SUPER GL2, SUPER GL speedy, SUPER GL ambulance

Glucocapil calibration solution

QuantityItem numberItem descriptionDevice(s)

866612001Calibration solution system glucose/lactate, 1 x 100 pcs.SUPER GL compact, SUPER GL2, SUPER GL speedy, SUPER GL easy / SUPER GL easy+, SUPER GL ambulance 0560 980 002 00Calibration solution system glucose/lactate/hb, 1 x 100 pcs.SUPER GL compact, SUPER GL easy / SUPER GL easy+

Miscellaneous

QuantityItem numberItem descriptionDevice(s)

0320 970 001 00KeyCard B1000SUPER GL2, SUPER GL speedy 0320 970 007 00KeyCard S6000SUPER GL2, SUPER GL speedy 0550 970 002 00Operation Card 1000 samplesSUPER GL compact, SUPER GL easy / SUPER GL easy+

Sets

QuantityItem numberItem descriptionDevice(s)

Set control material laboratory consisting of:SUPER GL compact, SUPER GL2, SUPER GL speedy, SUPER GL easy / SUPER GL easy+, SUPER GL ambulance 0500 988 002 001 x Trulab N 0500 988 003 001 x Trulab P 0500 988 001 006 x deionised water 10 ml 0500 988 009 001 x pipette tips blue, 50 pcs. 0500 988 008 001 x sample cups 1.5 ml clear, 50 pcs.

Set for 1000 samples glucose/lactate/hb consisting of:SUPER GL compact, SUPER GL easy / SUPER GL easy+ 0560 980 005 001 x Glucocapil 1.5 ml / 500 µl gluc/lac/hb, 10 x 100 pcs. 9050 210 011 x open-end-capillaries 10 µl , 10 x 100 pcs. 0560 980 002 001 x Calibration solution system glucose/lactate/hb, 1 x 100 pcs. 0550 951 002 007 x Hemolysate-System-Solution Containerkit 1x 300 ml 0550 970 002 001 x Operation Card 1000 samples

Set for 3000 samples glucose/lactate consisting of:SUPER GL2, SUPER GL speedy 0500 211 000 001 x Sensor glucose/lactate 3000 samples 8660 100 61 x Hemolysate-System-Solution 6 x 1000ml 8666 200 003 x Glucocapil 2.0 ml / 1000 µl, 10 x 100 pcs. 9010 220 013 x end-to-end-capillaries 20 µl, 10 x 100 pcs. 8666 120 013 x Calibration solution system glucose/lactate, 1 x 100 pcs. 0320 970 001 003 x KeyCard B1000 0320 970 007 001 x KeyCard S6000

Set for 3000 samples glucose consisting of:SUPER GL2, SUPER GL speedy 0320 210 000 001 x Sensor glucose 0110 980 006 001 x Hemolysate-System-Solution 5 x 1200ml 8666 200 003 x Glucocapil 2.0 ml / 1000 µl, 10 x 100 pcs. 9010 220 013 x end-to-end-capillaries 20 µl, 10 x 100 pcs. 8666 120 013 x Calibration solution system glucose/lactate, 1 x 100 pcs. 0320 970 001 003 x KeyCard B1000 0320 970 007 001 x KeyCard S6000

Set for 100 samples HbA1c consisting of:SUPER GL clinchem 0450 980 100 001 x HbA1c ID, 100 pcs. 0450 951 002 002 x Containerkit SUPER ID clinchem, 1 x 300 ml 0450 980 006 001 x Sample cups ID, 100 pcs., incl. 10µl open-end-capillaries

Set for 3000 samples glucose/lactate consisting of:SUPER GL ambulance 0500 211 000 001 x Sensor glucose/lactate 3000 samples 8660 10061 x Hemolysate-System-Solution 6 x 1000ml 8666 200 003 x Glucocapil 2.0 ml / 1000 µl, 10 x 100 pcs. 9010 220 013 x end-to-end-capillaries 20 µl, 10 x 100 pcs. 8666 120 013 x Calibration solution system glucose/lactate, 1 x 100 pcs.
